Portable energy storage system as back up power for office home camping military

FOB Reference Price:Get Latest Price
  • 50 - 99 Units
    US $400.00
  • >=100 Units
    US $380.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
AY-P1000 portable ups power supply
Phase:
Single Phase
Protection:
Short Circuit
Weight:
6.5kg
Output Voltage:
AC: 220V or 110V, DC: 12V and 5V, AC: 220V or 110V, DC: 12V and 5V
Type:
Standby
Application:
first aid, mining, exploration, military, scientific, media, tourism,
Product name:
Energy Storage System
battery pack inside:
25.9V 41.6AH
charging time:
9-10 hours
peak output power:
2050W
continuous output power:
1000W
operating temperature:
-20℃ --60℃
dimension:
34.5*24.68*17.2cm
protection function:
Over voltage, over temperation, over load, AC short circuit
Emergency light:
1W
Supply Ability
Supply Ability:
3000 Unit/Units per Month Only for reference
Packaging & Delivery
Packaging Details
Shock proof Carton box
Port
Shenzhen
Lead Time :
two weeks after payment

Product Description

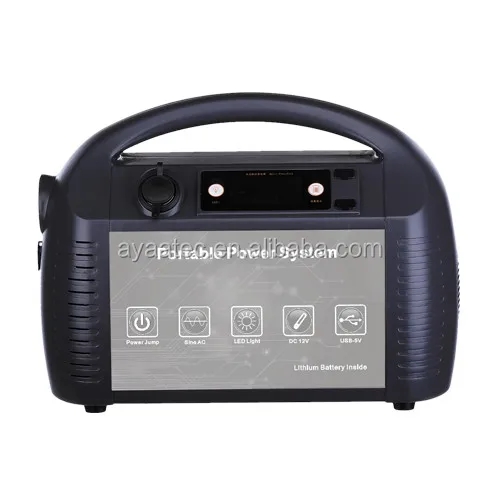

Energy Storage System AY-P1000W is off line ,dual function portable  ups power supply.

It is with capacity 22.2V39AH/865Wh and accurate pure wave AC 220V/50hz, 110v/60hz, DC 12V 4A,12V 5A . AY-P1000W is designed with the safety lithium battery and inverter technology, which features digital display the energy of power, emergency LED lighting, 12V car engineer start, etc.

The built-in main board with multi protected function and Intelligent battery management board ensure its safe for use



Technical Parameter
AYAA Portable off-line ups  Power Supplu
Model
ups Power Supply AY-P1000W
Solar Panel (Optional)
Battery
Maximum Input Voltage
36V
Type
Lithium
Input Power
360W
Capacity
22.2V 39AH
Environment
Inverter
Humidity
5RH to 95Rh
Continuous Power
1000W
Operating Temperature
O to 40℃
Surge Power
2000W
Storage Temperature
-20 to 60℃
Output Voltage
110V/220V
Estimating Recharging Time
Output Wave Form
Pure Sine Wave
By Built-in Charger
5.6H
Phase
Single Phase
By Solar Panel

AC Receptacles
Universal
By Wind Turbine

Plug
EU/UK/USA/AU/CN
General Information
Peak Efficiency
99.9%
Accessories
Charger
No Load Battery Drew
<3W
Product Dimension

Transfer Time
<30ms
Packing Dimension
 390*240*290mm
AC Input Protection

Net Weight
 6.5Kg
Output Port
Gross Weight
 9.5Kg
Output (DC/AC)
 12V     24V      5V      110/220V
Office Back Up Power Application
Qty
 1          1          2         2
5W Cell Phone
200H
DC Charger
35W LCD Monitor
28.5h
Charger Current
4A
60W Table Lamp
16.6H
Charging Voltage
25.2V
65W Laptop
15.3H
Protection
Home Back Up Power Application
Over Temperature
65℃
80W Freezer
12.5H
AC Over Voltage
100~120V/ 200~240V
120W Fridge
8.3H
AC Short Circuit
Yes
700W Drill
1.4H
DC Short Circuit
Yes
1000W Micro Wave
1h
Protection Level
IP22
1200W Coffee Maker





Purchase Tips

1.Please ensure the load for ups power supply is no more than 1000W

2.Matching electrical appliance with standard AC input

3.Matching city power standard frequency

4.Use matching DC output to power up your load

5.Evaluating your load if it has Surge Power( Instantaneous Power)

6.How much back up time do you want for your load

7.Please feel free to discuss with our engineer before purchase



load back up time calculation:

Energy Storage System  AY-P1000



1000     ÷load power cunsumption        ≈
