high power energy storage system with AC DC output for home office military outdoor

FOB Reference Price:Get Latest Price
US $10-500 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
AY-T3000
Phase:
Single Phase, single phase
Protection:
Overvoltage
Weight:
30kg
Output Voltage:
110V/220V
Type:
Standby
Application:
Military
Product Name:
high power energy storage system
Battery Capacity:
22.2V 140Ah
Wave Form:
Pure Sine Wave Output
Charging current:
4A
Charging voltage:
25.2V
Products Type:
Long Time Backup
Charging time:
11-13h
Color:
Black
Mode No:
AY-T3000
Supply Ability
Supply Ability:
1000 Unit/Units per Week
Packaging & Delivery
Port
Shenzhen.China
Lead Time :
Shipped in 10 days after payment
Product Description

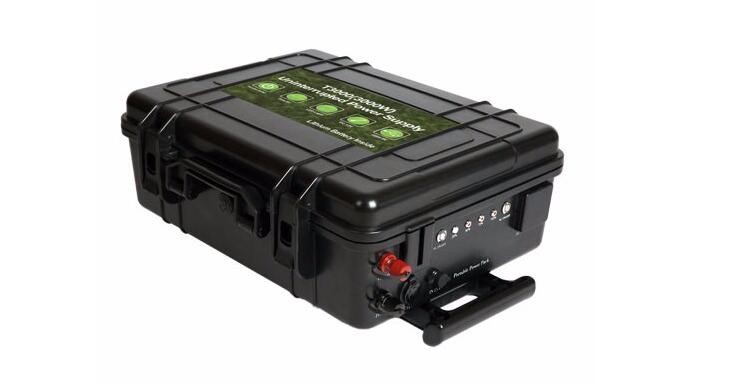

Energy storage system AY-T3000W is off line ,dual function portable AC power station with built-in UPS.  It is with capacity 12V 280AH/3360Wh and accurate pure wave AC 220V/50hz, 110V/60hz, DC 12V10A.  AY-T3000W is designed with the safety lithium battery and inverter technology, which features LED indicator digital display the energy of power, DC 24V and DC 12V dual output, etc.The built-in main board  with multi protected function and Intelligent battery management board ensure its safety for use.

AY-T3000W is applied to a variety of mobile products such as mobile phone, satellite phones, digital cameras, mobile hard drives, cameras, tablet PC, LED lights, laptop computers, car boot, outdoor  lighting, water pump, medical equipment and so on, which  can be used for the following field such as firstaid, mining, exploration, military, scientific, media, tourism, disaster relief, medical aid.750

Technical Parameter



AYAA Portable off-grid Home Power System
Model
ups Power Supply AY-GT3000W
Solar Panel (Optional)
Battery
Maximum Input Voltage
36V
Type
Li-Polymer
Input Power
360W
Capacity
22.2V 140AH
Environment
Inverter
Humidity
5RH to 95Rh
Continuous Power
3000W
Operating Temperature
O to 40℃
Surge Power
5000W
Storage Temperature
-20 to 60℃
Output Voltage
110V/220V
Estimating Recharging Time
Output Wave Form
Pure Sine Wave
By Built-in Charger
14H
Phase
Single Phase
By Solar Panel

AC Receptacles
Universal
By Wind Turbine

Plug
EU/UK/USA/AU/CN
General Information
Peak Efficiency
88%
Accessories
Charger
No Load Battery Drew
6W
Product Dimension
 560*450*200mm
Transfer Time
5ms
Packing Dimension

AC Input Protection

Net Weight
 30Kg
Output Port
Gross Weight

Output (DC/AC)
12V       24V        5V         110/220V
Office Back Up Power Application
Qty
1           1            2             2
5W Cell Phone
600H
DC Charger
35W LCD Monitor
85.7H
Charger Current
10A
60W Table Lamp
50H
Charging Voltage
25.2V
65W Laptop
46H
Protection
Home Back Up Power Application
Over Temperature
65℃
80W Freezer
37.5H
AC Over Voltage
100~120V/ 200~240V
120W Fridge
25H
AC Short Circuit
Yes
700W Drill
4.2H
DC Short Circuit
Yes
1000W Micro Wave
3H
Protection Level
IP22
1200W Coffee Maker
2.5H



After Sales Service

ups
