300W solar energy storage system with lithium battery built in for home office outdoor power supply

FOB Reference Price:Get Latest Price
US $10-500 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
AY-P1500W solar energy storage stystem
Specification:
Normal
Application:
Home
Output Voltage (V):
AC 110V/220V DC 12V 24V USB 5V
Load Power (W):
300W
Solar Power (W):
300W
Work Time (h):
12 Hours
Capacity:
22.2V 52AH
Wave Form:
Pure Sine Wave Output
Battery Type:
Lithium Battery
Display:
High Definition LED
Color:
Black
charging time:
9-10hours
output voltage:
DC12V USB 5V
Output current:
DC 10A/ 2A
Certification:
CE/ROSH/UL/MSDS/UN38.3
Frequency:
50HZ/60HZ
Supply Ability
Supply Ability:
1000 Unit/Units per Week
Packaging & Delivery
Packaging Details
carton box
Port
Shenzhen, China
Lead Time :
Shipped in 10 days after payment

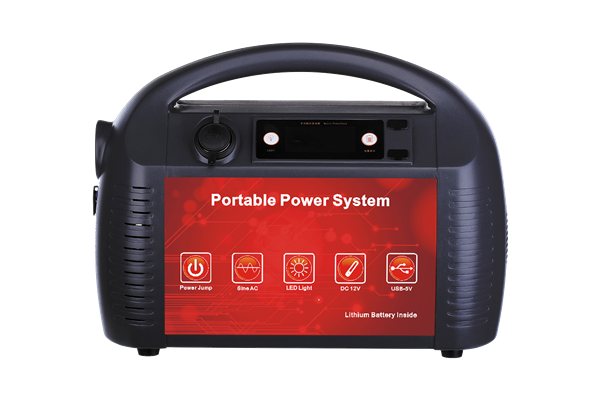

 Solar Energy Storage System AY-P300W


Product Description



Solar energy storage system AY-P300W is off line ,dual function portable AC power station with built-in UPS.

It is with capacity 22.2V 26AH/577Wh and accurate pure wave AC 220V/50hz, 110v/60hz, DC 12V 4A,12V 5A . AY-P500W is designed with the safety lithium battery and inverter technology, which features digital display the energy of power, emergency LED lighting, 12V car engineer start, etc.

The built-in main board with multi protected function and Intelligent battery management board ensure its safe for use



           P300 (2).png

Technical Parameter
AYAA Portable off-line ups Power System
Model
ups Power Supply AY-P300W
Solar Panel (Optional)
Battery
Maximum Input Voltage
36V
Type
Lithium
Input Power
360W
Capacity
22.2V 13AH
Environment
Inverter
Humidity
5RH to 95Rh
Continuous Power
300W
Operating Temperature
O to 40℃
Surge Power
600W
Storage Temperature
-20 to 60℃
Output Voltage
110V/220V
Estimating Recharging Time
Output Wave Form
Pure Sine Wave
By Built-in Charger
3.25H
Phase
Single Phase
By Solar Panel

AC Receptacles
Universal
By Wind Turbine

Plug
EU/UK/USA/AU/CN
General Information
Peak Efficiency
91%
Accessories
Charger
No Load Battery Drew
6W
Product Dimension

Transfer Time
5ms
Packing Dimension
 390*240*290mm
AC Input Protection

Net Weight
 3.9Kg
Output Port
Gross Weight
 6.5Kg
Output (DC/AC)
 12V     5V    24V      110/220V
Office Back Up Power Application
Qty
 1         2       1            2
5W Cell Phone
60H
DC Charger
35W LCD Monitor
8.5H
Charger Current
4A
60W Table Lamp
5H
Charging Voltage
25.2V
65W Laptop
4.6H
Protection
Home Back Up Power Application
Over Temperature
65℃
80W Freezer
3.7H
AC Over Voltage
100~120V/ 200~240V
120W Fridge
2.5H
AC Short Circuit
Yes
700W Drill

DC Short Circuit
Yes
1000W Micro Wave

Protection Level
IP22
1200W Coffee Maker

Purchase Tips

1.Please ensure the load for ups power supply is no more than 300W

2.Matching electrical appliance with standard AC input

3.Matching city power standard frequency

4.Use matching DC output to power up your load

5.Evaluating your load if it has Surge Power( Instantaneous Power)

6.How much back up time do you want for your load

7.Please feel free to discuss with our engineer before purchase



load back up time calculation:

solar energy storage system AY-P300



300     ÷load power cunsumption        ≈

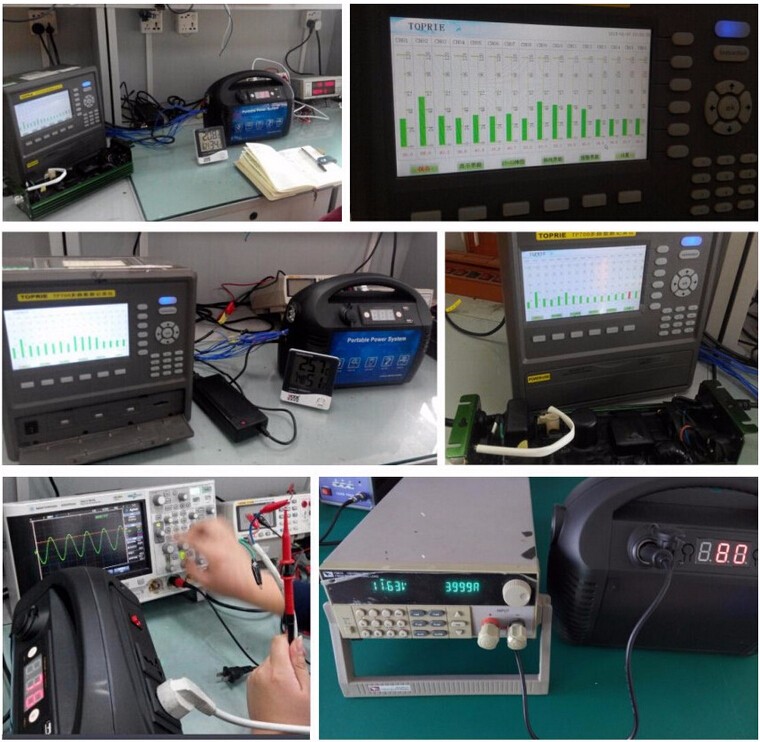

ups power supply application 1.pngups power supply test2.jpg
