Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AYAA
  • Model Number: AY-B1000W
  • Phase: Single Phase
  • Protection: Overcurrent
  • Weight: 7.8KG
  • Output Voltage: 110V/120V/220V/230V
  • Type: Standby
  • Application: Networking
  • Product name: Uninterrupted Power System
  • Wave Form: Pure Sine Wave Output
  • Battery Type: Lithium Battery
  • Color: Black case
  • Certification: CE
  • Capacity: 12V 78AH
  • AC Input voltage: 220/230/240V
  • Cahrge time: 10~12h
  • DC Input voltage: 36V
  • Frequency: 50HZ/60HZ

Packaging & Delivery

Packaging Details shockproof carton case
Delivery Time Shipped in 15 days after payment

Product Description

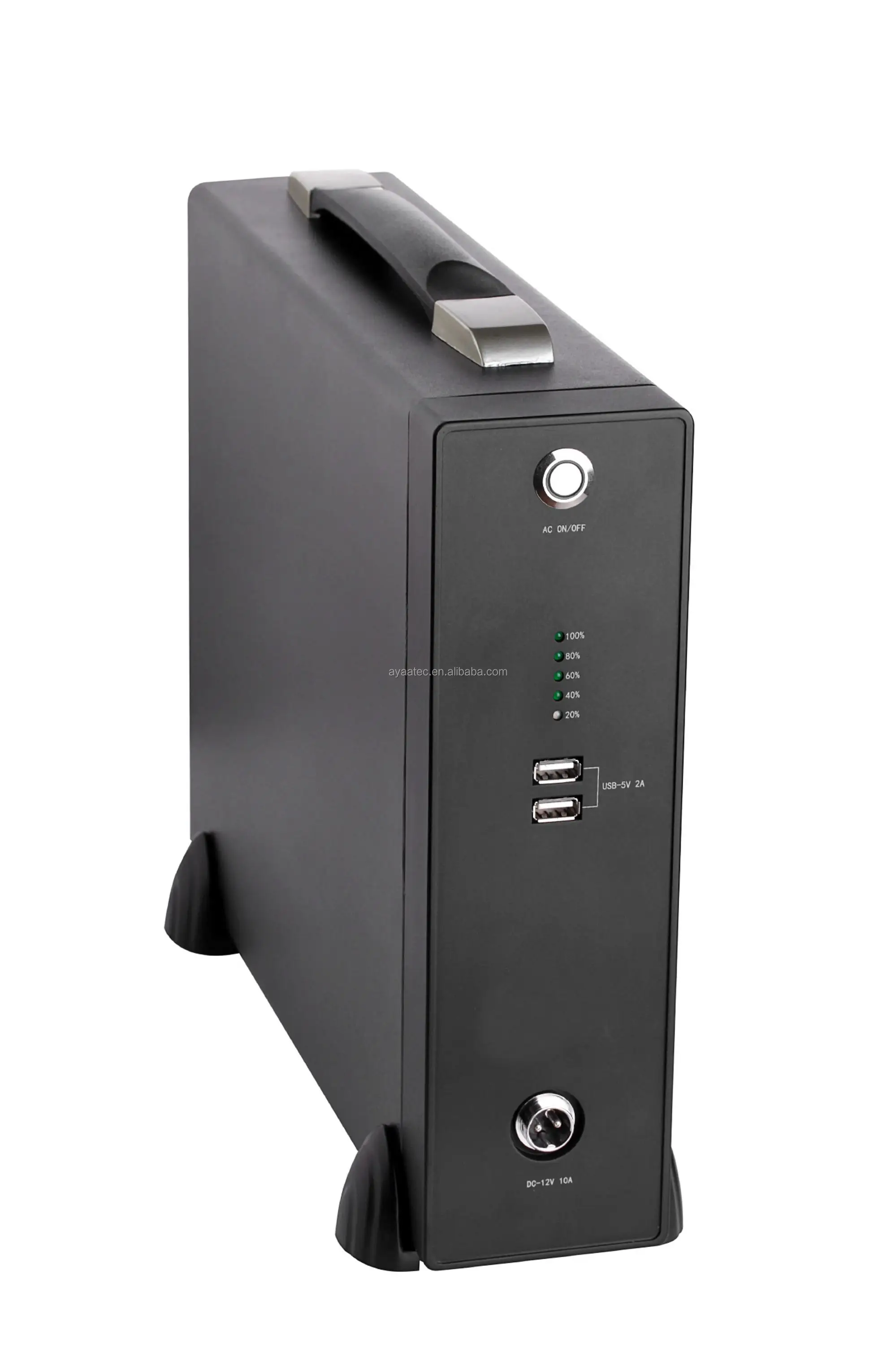

Camping ups power supply AY-B1000W is off line ,dual function portable AC power station with built-in UPS.

It is with capacity 12V 78AH/936Wh and accurate pure wave AC 220V/50hz, 110v/60hz, DC 12V 10A,USB5V 2A .

AYB1000W is designed with the safety lithium battery and inverter technology, which Single-computer long standby more than 10 hours and Multi-function with DC 12V, USB5V.

The built-in main board with multi protected function and Intelligent battery management board ensure its safe for use







Technical Parameter
AYAA Portable off-line ups Power System
Model

ups Power Supply

AY-B1000W

Solar Panel (Optional)
Battery Maximum Input Voltage36V
Type LithiumInput Power360W
Capacity 12V 78AHEnvironment
Inverter Humidity5RH to 95Rh
Continuous Power500WOperating TemperatureO to 40℃
Surge Power 1000WStorage Temperature-20 to 60℃
Output Voltage 110V/220VEstimating Recharging Time
Output Wave Form Pure Sine WaveBy Built-in Charger10~12H
Phase Single Phase By Solar Panel
AC Receptacles Universal By Wind Turbine
PlugEU/UK/USA/AU/CNGeneral Information
Peak Efficiency 91%AccessoriesCharger cable
No Load Battery Drew6WProduct Dimension  330*265*78mm
Transfer Time5msPacking Dimension
AC Input Protection  Net Weight  7.8Kg
Output PortGross Weight 9.0Kg
Output (DC/AC) 12V     5V     110/220VOffice Back Up Power Application
Qty 2        2              25W Cell Phone200H
DC Charger35W LCD Monitor28H
Charger Current7A60W Table Lamp 16H
Charging Voltage12.6V65W Laptop15H
Protection Home Back Up Power Application
Over Temperature65℃80W Freezer12H
AC Over Voltage100~120V/ 200~240V120W Fridge8H
AC Short CircuitYes700W Drill1.4H
DC Short CircuitYes1000W Micro Wave1H
Protection Level IP221200W Coffee Maker
Purchase Tips

1.Please ensure the load for ups power supply is no more than 500W

2.Matching electrical appliance with standard AC input

3.Matching city power standard frequency

4.Use matching DC output to power up your load

5.Evaluating your load if it has Surge Power( Instantaneous Power)

6.How much back up time do you want for your load

7.Please feel free to discuss with our engineer before purchase



load back up time calculation:

camping ups power supply  AY-B1000



1000     ÷load power cunsumption        ≈
