Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AYAA
  • Model Number: Customized
  • Base Material: FR-4
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.20mm
  • Min. Line Width: 3mi
  • Min. Line Spacing: 0.003"
  • Surface Finishing: HASL
  • Model: PCM-LB3S4A-AY170(3S)
  • Application: Electronic battery pack
  • Maximal continuous charging/dis current: 4A

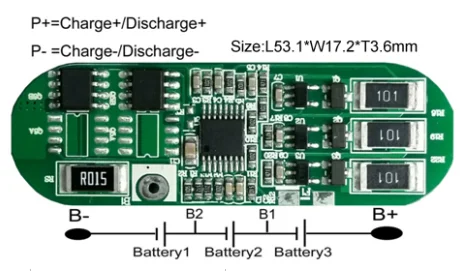

  • Size: L53.1*W17.2*T3.6mm
  • Operating Temperature Range: -40~+85°C
  • Storage Temperature Range: -40~+125°C
  • Over current detection current: 10±2A
  • Over charge detection voltage: 4.35±0.025V
  • charging voltage: DC:12.6V CC/CV
  • Detection delay time: 5ms-15ms

Packaging & Delivery

Packaging Details Inner packing:Vaccum packing/Plastic bag.
Outer packing:Standard carton packing or packing per customer's requirements.
Delivery Time 15 working days after confirming the order

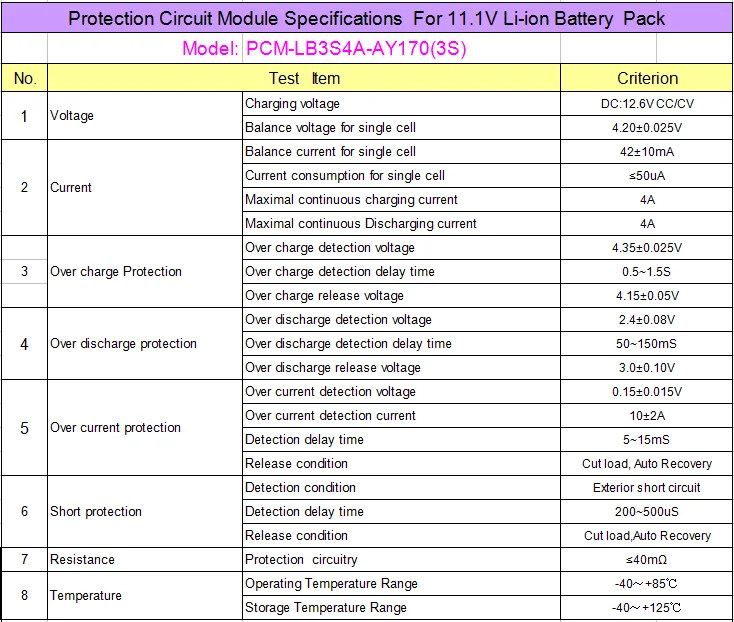

Protection Circuit Module Specifications  For 11.1V Li-ion Battery  Pack

Product Description








Packaging & Shipping



Trade Shows


Company Information



Q:  Can I use this protection circuit board for my battery?

 A: Can use this protection circuit board, or not? There are 2 questions:How much cells in series is your battery pack?

The protection circuit board you need to buy must be same cells in series as your battery pack.

What material is your battery? Only the LiFePo4 battery has different electric parameter from other battery,

so if you need buy the protection circuit board for LiFePo4 battery , Please let us know firstly.

Q:  How many Ampere protection circuit boards should choose?

A: It depends on your load power such as electric motor power please contact the sales or technical support before buying.

Q:  What is the distinction between balance and unbalance function?

A: Equilibrium function is that high voltage cells will be discharged with resistor, waiting for the low voltage cells , to achieve the each cell voltage is consistent , to improve the battery performance for the whole group.

Q: Do you have Minimum Order Requirement (MOQ)?

A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your requirements, also ODM / OEM is welcome.

Any further questions, Welcome to contact our sales person by sending inquiry . Your satisfaction is our pleasure. Let’s Join for mutual Benefits!
